fos/4 Fresnel, 7″, Lustr X8, CE

Fos/4 Fresnel 7″ Lustr X8

SKU: 7470A1210 Categories: , , , , ,


fos/4 Fresnel, 7″, Lustr X8, CE – 7470A1210

If you wish to purchase this product, please fill out our order form below.

  • This field is for validation purposes and should be left unchanged.


Designed for the studio and film industry, fos/4 takes the most desired features of a standard incandescent Fresnel and adds in the nuanced
colour mixing, smooth fades, and LED technology of ETC’s other professional grade fixtures.

With fos/4, you get a true Fresnel with an LED engine. With a 13–55 degree zoom, remarkable quality of light and brightness up to 9,700 lumens, you get the feature set and brightness you need for your shoot. With the addition of Deep Red LEDs, the Lustr X8 array pushes the boundaries of colour rendering possibilities while the tuneable Daylight HDR array gives new depth to your white light. The fos/4 series fixtures are made in the USA and backed by a 24/7/365 phone support guarantee – we’ll be there when you need us, regardless of time or day.


• Television studios
• Location shoots
• Film sets


• Two array choices:
– Lustr X8 full colour array
– Daylight HDR tuneable white array
• 7 in glass Fresnel lens aperture
• Intuitive UI with colour picker
• Up to 9,700 lumens
• Tuneable CCT between 1900–10450 K
• NFC configuration
• Multiverse® wireless control
• Standard 5/10 year LED fixture warranty


Intuitive UI

The user interface was designed with the cinematic workflow in mind. Features are simple and intuitive without compromising efficiency. The four backlit encoders change colours to correspond to the attributes they control on the screen.

Even new users can quickly and accurately adjust settings.

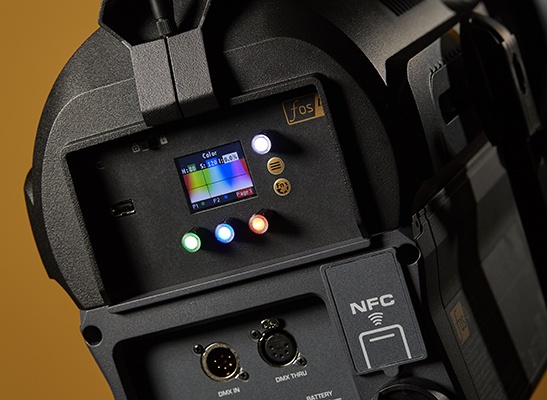

fos/4 Fresnel Macro 1


Colour control

With fos/4 you have the option to change your fixture’s default philosophy. When working with additive colour, the fixture often decides how to mix the colour requested. There are many different options. Traditionally fixtures choose to mix the brightest version of the colour you’re trying to make. While this gives you intensity, it does not give you quality light. Aiming for quality may mean a noticeable decrease in intensity. We’re now letting you decide what you want to see. Use the tune functionality to choose brightest or best spectral.

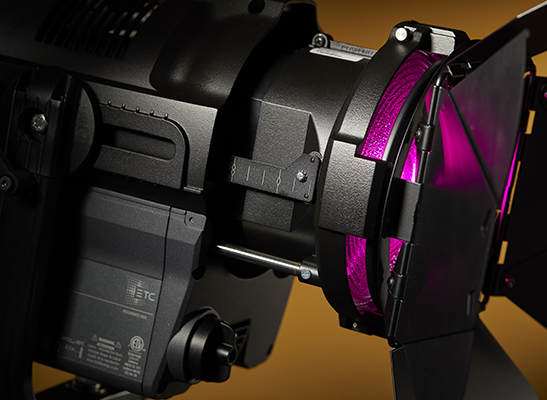

fos/4 Fresnel Macro 2


Wireless control

Near field communication (NFC) enables you to push and pull information including fixture setup using ETC’s Set Light app from your mobile phone or tablet, even when the fixture isn’t powered.

Or use City Theatrical’s Multiverse wireless DMX control with your console. Broadcast as many as 10 universes of DMX from a single transmitter without excessive radio energy.

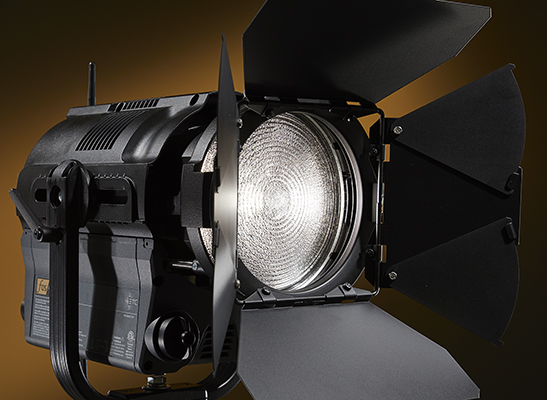

fos/4 Fresnel Macro 3


13-55 degree zoom

A true Fresnel with LED capabilities, fos/4 Fresnel has zoom control from either the front or the back of the fixture. Adjust the beam then use barn doors or other accessories to control the edges.

Deep Red

With the addition of a deep red LED, we render skin tones, sunsets, and moody saturated scenes better. We’ve reached further into the corners of the CIE colour space to grab the deepest red — a red that is essential to accurately capture the warm glow of firelight, romance at sunset, the most nuanced skin tones, and the truest whites.

Predictable nuanced colour from reality, to the camera, to the screen. See how fos/4 transforms how you work each day.

To read more about the design and feature set of fos/4 fixtures, check out our their studio website.
